Occlusion Masks

This page describes how to generate occlusion masks, the mask artifact format, the transform convention, and how masks are applied during evaluation.

Generating masks

When computing metrics, if a predicted point is in a region that is not observed in the ground-truth data, it may be unfair to count it as an error. To address this, we can use occlusion masks to identify which regions of the scene are visible (i.e., observed) and which are occluded (i.e., unobserved). During evaluation, we can then ignore predicted points that fall into occluded regions.

e3r mask gen builds a volumetric occlusion mask from selected views. It supports three input modes:

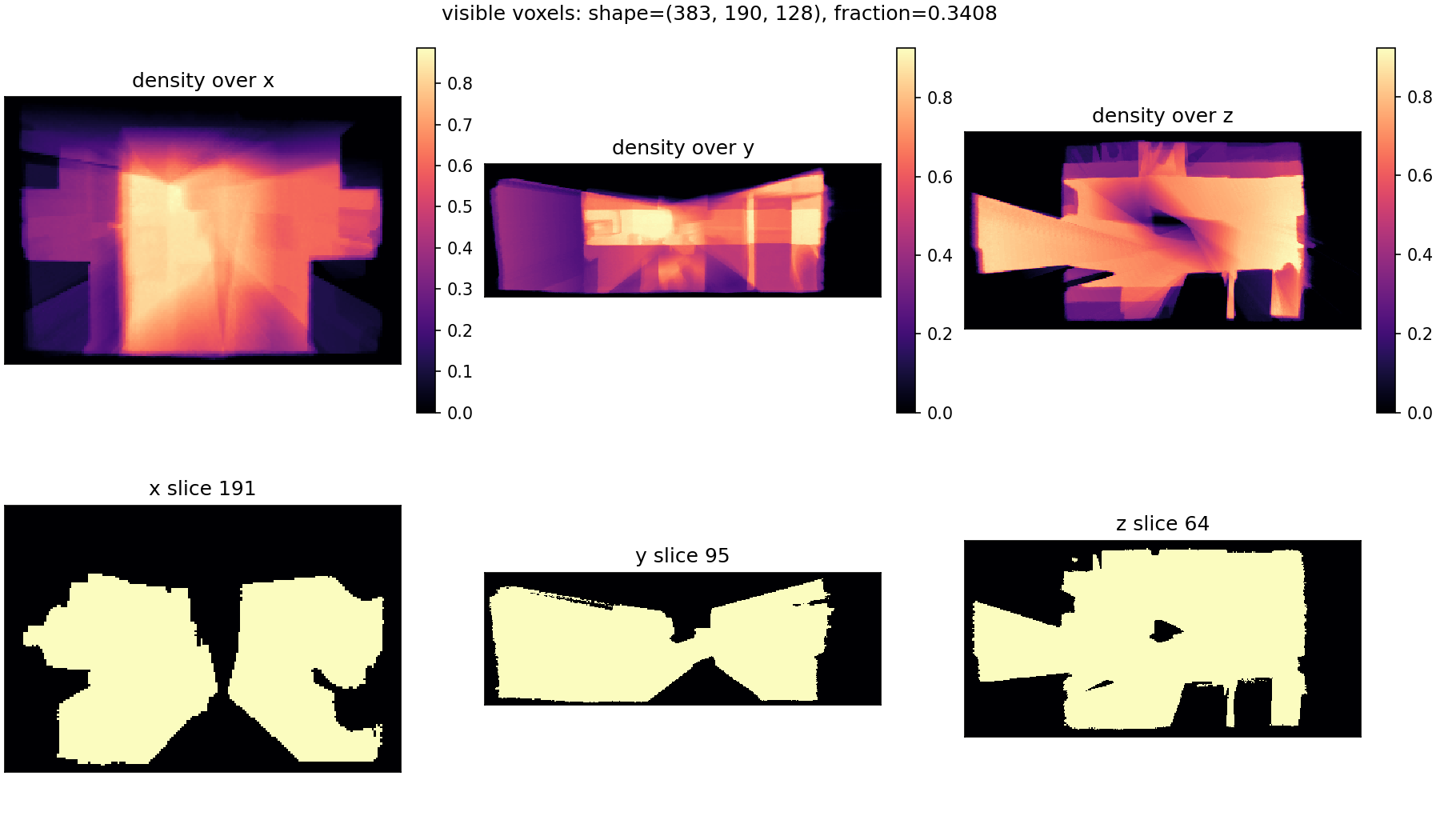

Occlusion mask visualization

  • --preset NAME --root PATH --scene ID: use a registered dataset adapter.
  • --depth-path DIR --poses-path PATH --intrinsics-path K.txt: use sensor depth maps.
  • --mesh-path mesh.ply --poses-path PATH --intrinsics-path K.txt: render depth from a mesh, then generate the mask from the rendered depth.

Example using depth images:

e3r mask gen \
  --depth-path /data/scene/depth \
  --depth-pattern "{frame:06d}.png" \
  --poses-path /data/scene/poses \
  --poses-pattern "{frame:06d}.txt" \
  --intrinsics-path /data/scene/intrinsic_depth.txt \
  --depth-scale 1000 \
  --pose-convention T_cw \
  --camera-frame opencv \
  --max-depth 3.5 \
  --voxel-size 0.02 \
  --out-dir /data/masks/scene0001_00

The command writes:

  • occlusion_mask.npy
  • T_mask_scene.txt

Generation behavior

Mask generation has two stages:

  1. BBox construction: selected valid depth pixels are back-projected into scene/world coordinates. Their bounds, plus --margin, define the mask volume. Pixels that are non-finite, non-positive, or farther than --max-depth are ignored.
  2. Voxel carving: voxel centers are projected into each selected camera. A voxel is marked visible if it lands inside the camera frustum and its camera-frame depth is no farther than depth_at_pixel + truncation.

Because the bbox is depth-derived, the generated volume is tight around observed geometry. Empty space between the camera and the observed surface may fall outside the mask volume unless it is within the padded depth-sample bounds. During evaluation, out-of-bounds points are treated as occluded.

If no selected depth pixels survive filtering, generation fails with a depth-derived bbox error. Increase --max-depth, check --depth-scale, or select frames with valid depth.

Useful generation options:

Flag Purpose
--max-depth Discard farther depth pixels and bound carving/projection.
--voxel-size Output grid resolution in metres. Smaller is tighter but larger.
--margin Padding added around the depth-derived bbox.
--truncation Visible band behind surfaces. Defaults to 4 * voxel_size.
--frame-stride Process every Nth frame.
--frames / --frames-file Explicitly select frames.
--dilation Dilate visible voxels after carving.

Inspect a generated mask with:

e3r mask inspect \
  --mask /data/masks/scene0001_00/occlusion_mask.npy \
  --t-mask-scene /data/masks/scene0001_00/T_mask_scene.txt

Mask artifact format

For each scene, provide a directory with:

  • occlusion_mask.npy: a 3D array (D_x, D_y, D_z) where
  • 0 means visible
  • 1 means occluded
  • T_mask_scene.txt: a whitespace-delimited 4x4 matrix.

Transform convention

T_mask_scene maps homogeneous scene/world coordinates to continuous mask voxel coordinates:

  • input: [x, y, z, 1]^T
  • output: [i, j, k, 1]^T

So:

[i, j, k, 1]^T = T_mask_scene @ [x, y, z, 1]^T

[i, j, k] are continuous voxel coordinates used with trilinear interpolation. Integer values index voxel centers.

Sampling and visibility rule

During filtering:

  1. Points are transformed to voxel space with T_mask_scene.
  2. Mask values are sampled trilinearly from occlusion_mask.npy.
  3. Out-of-bounds samples are treated as occluded (1.0).
  4. A point is kept iff sampled mask value < 0.5.

If all points are marked occluded, eval3r raises an error. This usually means the mask transform, coordinate frame, or unit scale does not match the evaluated geometry.

Applying masks

Metric CLI

Use explicit per-scene mask paths with:

  • --mask
  • --t-mask-scene

Example:

e3r metric geometry outputs/scannet/scene0001_00 \
  --gt /data/scannet/scene0001_00/gt_mesh.ply \
  --mask /data/scannet_masks/scene0001_00/occlusion_mask.npy \
  --t-mask-scene /data/scannet_masks/scene0001_00/T_mask_scene.txt

Benchmark CLI

Use a mask root plus path patterns relative to that root:

  • --mask-dir
  • --mask-pattern (default: {scene_id}/occlusion_mask.npy)
  • --t-mask-scene-pattern (default: {scene_id}/T_mask_scene.txt)

Benchmark masks are always applied to predicted points only.

e3r benchmark scannet \
  --pred-root outputs/scannet \
  --gt-root /data/scannet \
  --mask-dir /data/scannet_masks

Flat layouts are supported by including {scene_id} in the filename:

e3r benchmark scannet \
  --pred-root outputs/scannet \
  --gt-root /data/scannet \
  --mask-dir /data/scannet_masks \
  --mask-pattern "{scene_id}_mask.npy" \
  --t-mask-scene-pattern "{scene_id}_T_mask_scene.txt"

Mask semantics

Geometry masks apply only to predicted points after alignment. Ground-truth points remain unfiltered.
